Flexible Heating Mat (KRLA)
Technical Specifications
» Maximum size per mat 0,9 x 3m – Weight 2kg/m².
» Optional integral thermostat (10A/250V Max) or temperature sensor.
» (PT100 or type J thermocouple).
» Fitted with silicone insulated connection cable (length to suit requirements).
» Manufactured to suit specific applications. Multiple heat zones can supply, there is no shape limitation and holes can supply to suit.
» Nominal Voltage 12 to 600V.
» Maximum maintenance temperature up to 180°C.
» Maximum contact temperature up to 250°C (switched OFF).
Advantages
» Equal dissipation of heat thanks to the large contact surface.
» No local overheating.

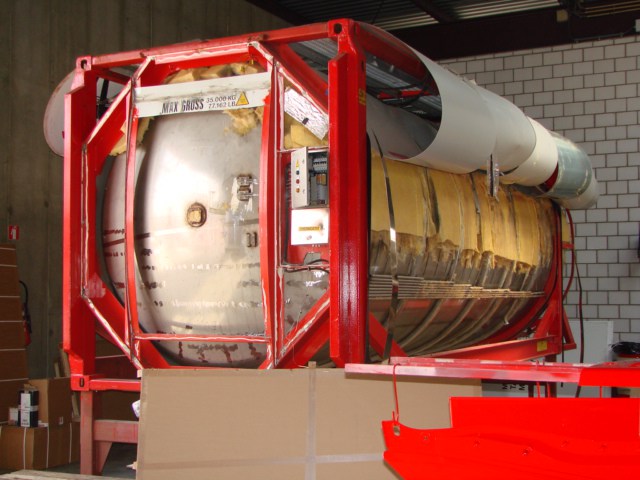

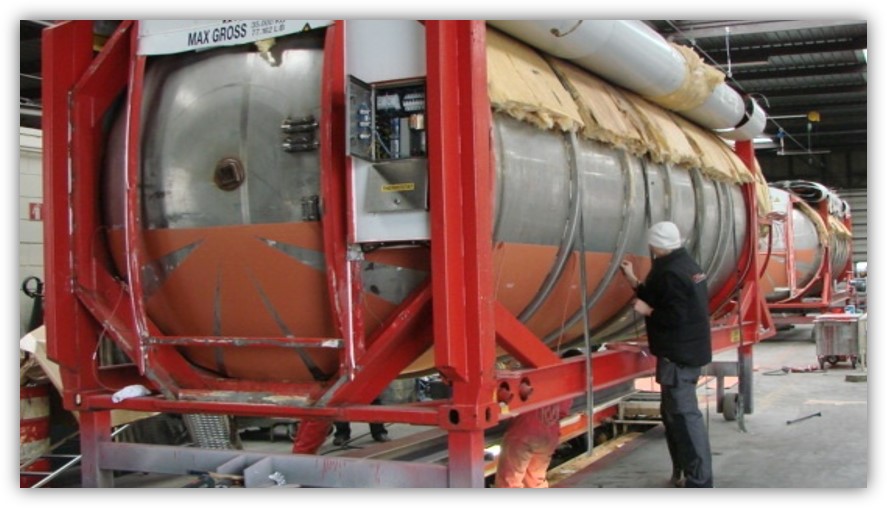

» The heating system is position on the lower half of the tank container.
» The best position to heat content.
» Less risk of damage in case of an accident.
» Can also use with half-full containers.
» Mat is double insulated, so no need for grounding.
» The heating system supplies up to 1,5 kW/m².
» This is more compact than SFM single core heating cable (max 800W/m²).
» The heating system is water and shockproof.
» A weakness for SMH mineral insulated cable.
» The heating mats are self-adhesive.
» Easy and quick installation.
» Silicone has a good chemical resistance.
» Can also withstand salty environments (like sea water).
